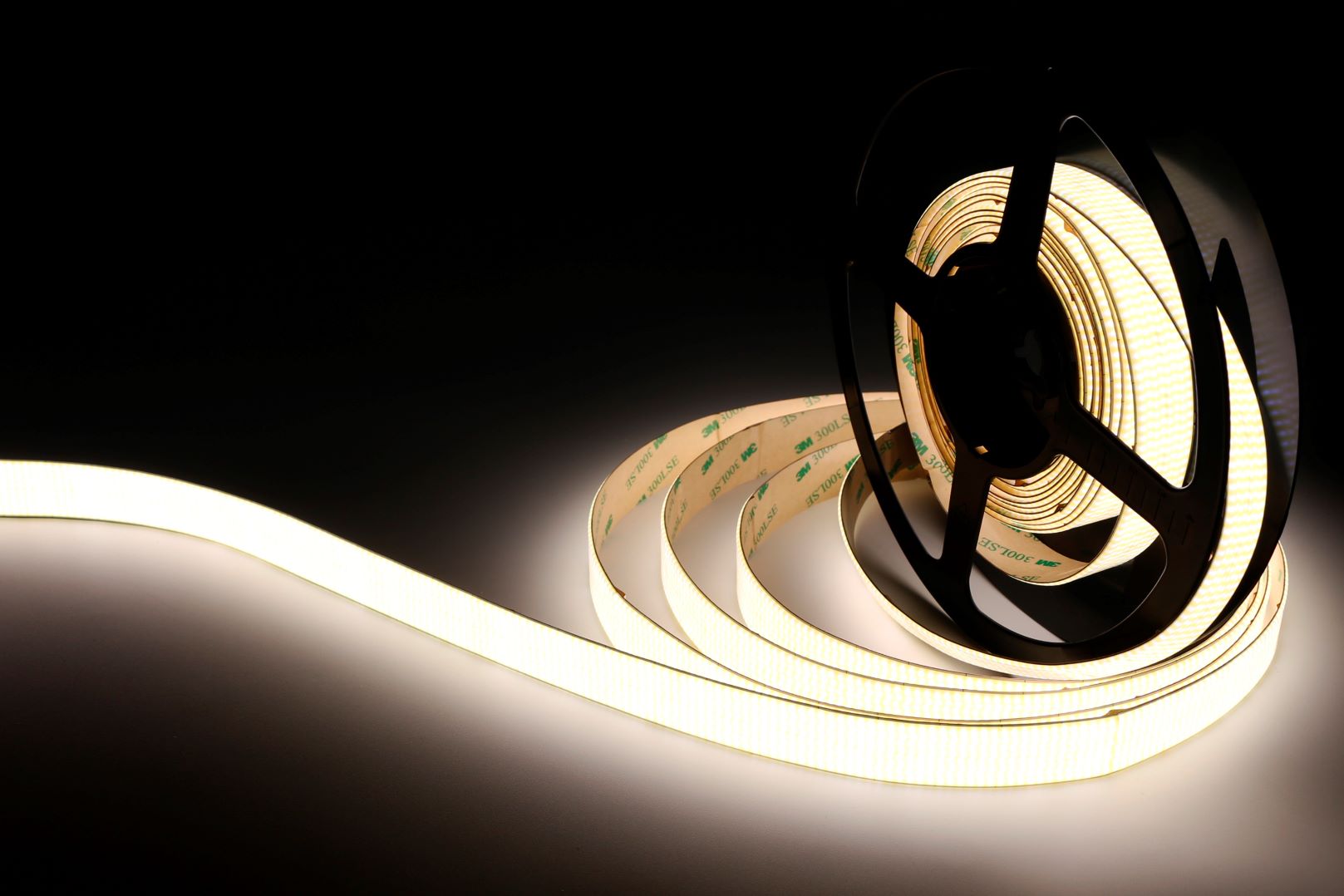

5m White COB Series 20mm Wide LED Strip Light - High CRI - 24V - IP20 - 2700K-6500K - 196.9in (16.40ft)
Rated at 150W over a 5m length, (30W /m) this "wide-body" single COB LED Strip Light emits 3,600LM/M
The strip can be cut every 15.5mm to suit your required lengths of LED Strip Lights. This wide-bodied LED Strip has a strong 300LSE adhesive backing ensuring that the strip remains firmly fixed into place.
In an open environment, the wide-body 20mm LED COB strip can be installed without an aluminium profile. However, it should not be mounted directly on wooden surfaces or in enclosed spaces, as these conditions can lead to poor heat dissipation, potentially affecting the strip's performance and longevity.
We recommend installing this LED light strip in a profile or our heat sink profile to dissipate the heat, ensuring the longevity of the LED COB.
The strip emits a continuous band of white light over the whole length and width of the strip and as there is no visible circuit board material showing at the side of the COB area.
This lighting solution is a professional-grade chip-on-board LED strip that is ideal for both commercial and domestic installations.
For more information on this product and our other exciting products, contact our technical sales team by phone, email or live chat and WhatsApp on our website for unmatched customer service.
Technical Data
Input voltage: 24V
Lumen(±5%): 3300-3900LM/M
CRI(Ra): COB
Efficiency(±5%): 110-130LM/W
LED Quantity: 3072leds/meter
Power/m: 30W/M
Beam Angle： 180°
PCB Width(mm) : 20mm
Color: 2700K/3000K/4000K/6000K/R/G/B
CRI: >90
Working environment: -25℃~+45℃
IP Grade: IP20
Max connection Length: 5m
Cut distance: 15.5mm
