    AMPDMXXL MiBoxer IP66 DMX Signal Amplifier

    $39.99
      (0 Reviews) | Write a review

    Part Number:AMPDMXXL
    Add to Wishlist
    Choose options above to see availability
    checkmark

    Free Shipping

    No minimum purchase required.
    checkmark

    Worry-free Returns

    - 30 day return policy

    This AMPDMXXL DMX Data Amplifier is designed to work with the following products from MI-Light / Mi-Boxer:

    UW409AXL
    UG409AXL
    UG405AXL
    SP403AXL
    When connecting long lengths of DMX (Digital Multiplex) cable between devices, or for projects where there are a lot of units to link together you will need to boost the DMX signal.

    This compact DMX amplifier from our Mi-Boxer range of products can be inserted into the DMX line. This will effectively boost the DMX signal so that it will carry over a longer distance. This will also enable more products that work off the DMX protocol to be controlled.

    The unit is rated IP66, allowing it to be used for projects with both indoor and outdoor light fixtures.

    The unit is supplied with integrated special 5-pin connectors that match the connectors supplied on the products it is connected to.

    Note: When long runs of DMX cable are required over a larger installation, it is advisable to attach a DMX terminator plug on the DMX output side of the last unit in the chain. Doing this will help to stop bounce back and other spurious flickering on the lighting products.

    If a DMX terminator plug is unavailable, then a 120 Ohm, 0.5W resistor can be connected between the + & - terminals on the last unit.

    For more information on this and any of our professional lighting and control products please contact our technical sales team by phone, email, or live chat via our website.

    Key Features:
    Amplifies your DMX signal
    Allows more DMX products to be controlled
    IP66 rated for indoor or outdoor use
    Special five pin connectors
    Works with UW409AXL, UG409AXL, UG405AXL & SP403AXL
    DMX in / out cables

    Installation Guide:

    Related Items

    E2-ZR 2 in 1 LED Controller (Zigbee 3.0 +2.4G)
    E2-ZR 2 in 1 LED Controller (Zigbee 3.0 +2.4G)
    • Tool-free instant wiring • Product follow zigbee 3.0 standard protocol • Zigbee Contrl distance: 100m (open area) • Compatible with Mi-Light / MiBoxer 2.4GHz series remote &b...
    E2-ZR
    $46.99
    DP2S MiBoxer DALI DT8 Colour Temperature Touch Wall Panel
    DP2S MiBoxer DALI DT8 Colour Temperature Touch Wall Panel
    This DALI DT8 CT control wall panel is available from our stunning MiLight product range. Featuring a stylish white glass finish, it has fully touch-sensitive controls. Designed to be integrated into ...
    DP2S
    $76.99
    D5W72 MiBoxer 72W RGB+CCT AC100-240V DMX LED Wall Washer
    D5W72 MiBoxer 72W RGB+CCT AC100-240V DMX LED Wall Washer
    This popular 1m DMX wall washer is available from our incredible range of MiLight MiBoxer products. This DMX RGB LED wall washer provides a maximum lumen rating of 1800LM. Read the specifications for ...
    D5W72
    $496.99
    E3-ZR 3 in 1 LED Controller (Zigbee 3.0 +2.4G)
    E3-ZR 3 in 1 LED Controller (Zigbee 3.0 +2.4G)
    • Tool-free instant wiring • Product follow zigbee 3.0 standard protocol • Zigbee Contrl distance: 100m (open area) • Compatible with Mi-Light / MiBoxer 2.4GHz series remote &b...
    E3-ZR
    $46.99

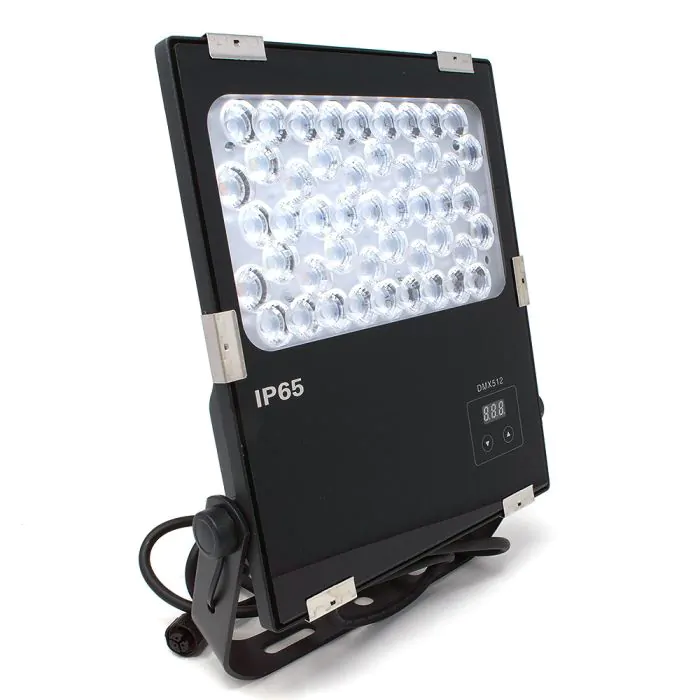

    D5G50 MiBoxer 50W RGB+CCT AC100-240V DMX LED Floodlight
